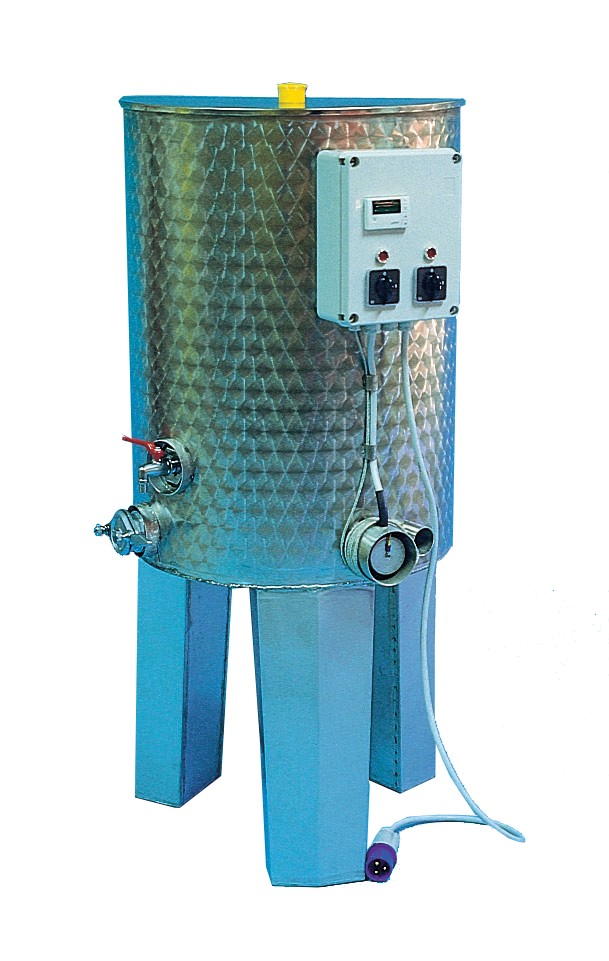

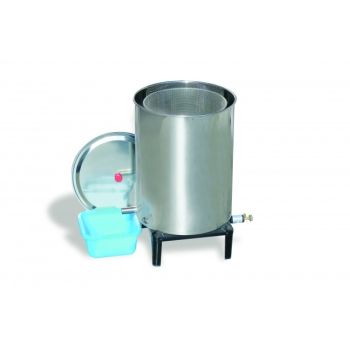

TECHNICAL SPECIFICATIONSInner diameter: 310 mmOuter diameter: 380 mmInner height: 300 mmOuter height: 400 mmCapacity: 25 litersDiathermic oil capacity: 20 litersElectrical absorption: 1000 WØ Taps: ½ inchWeight: 14 KgHeat protection: PolyethyleneWhen the melter is used in its classic version, i.e., with temperatures below 90°c, the heating element simply heats some water that must be introduced into the gap between the two containers. The thermostat, with manual temperature adjustment, keeps the temperature of the wax stable, thus avoiding dangerous overheating. The melter uses the bain-marie technique, by indirect heating to avoid overheating the wax, which would seriously damage its color, smell and texture. In the melter, either water or diathermic oil can be used as the heating liquid, depending on the use. If it is used as a sterilizer, it should be equipped with a special heating element and the heating liquid should be diathermic oil, suitable for high temperatures, instead of water.-Diathermic oil is not included

TECHNICAL SPECIFICATIONSInner diameter: 310 mmOuter diameter: 380 mmInner height: 300 mmOuter height: 400 mmCapacity: 25 litersDiathermic oil capacity: 20 litersElectrical absorption: 1000 WØ Taps: ½ inchWeight: 14 KgHeat protection: PolyethyleneWhen the melter is used in its classic version, i.e., with temperatures below 90°c, the heating element simply heats some water that must be introduced into the gap between the two containers. The thermostat, with manual temperature adjustment, keeps the temperature of the wax stable, thus avoiding dangerous overheating. The melter uses the bain-marie technique, by indirect heating to avoid overheating the wax, which would seriously damage its color, smell and texture. In the melter, either water or diathermic oil can be used as the heating liquid, depending on the use. If it is used as a sterilizer, it should be equipped with a special heating element and the heating liquid should be diathermic oil, suitable for high temperatures, instead of water.-Diathermic oil is not included

-

-

-

-

-

-

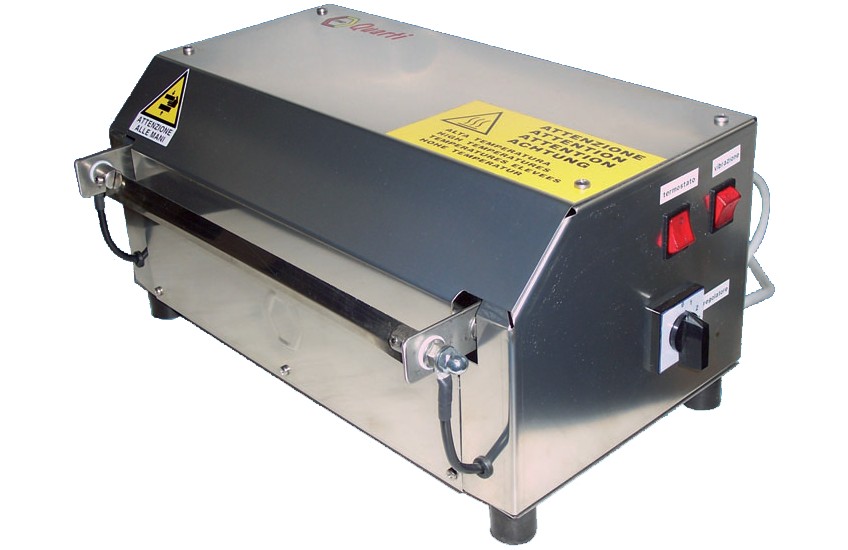

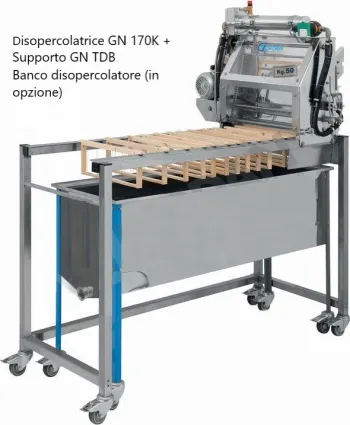

Its operation is simple: just slide the honeycomb to be uncapped onto the frame guides from top to bottom, passing first one face then the other on the blade. The opercula cut in this way fall onto the bench's drip pan. The different inclination of the frame varies the incidence of the blade thus the depth of cut. When the frame is fully tilted, the blade cuts flush with the wood. The frame supports can be changed in support width to fit any size. The thermostat allows the cutting blade temperature to be changed to select the optimum temperature for uncapping frames. A practical and compact uncapping machine for those who have few Beehives but want to rely on the precision of a mechanical blade. The electric benchtop uncapping machine is designed to be placed on our workbenches. With this uncapping machine you can process up to 150 frames in an hour, allowing you to speed up your work. Designed and manufactured inside our factory, the benchtop uncapping machine is the result of Made in Italy quality and all Lega experience. ADVANTAGES Easy to use Easy to clean Silent Made in Italy Durable over time TECHNICAL CHARACTERISTICS Manufacture: Stainless steel AISI 304 Maximum dimensions: 520x420x250 mm Motor power: 250 W Electrical absorption: 880 W Power supply voltage: 220 V Frequency: 50 Hz Temperatures reached: 40° to 120° C Production capacity: 150 frames/h Weight: 15 kg *The supports and adjusting screws are plastic

Its operation is simple: just slide the honeycomb to be uncapped onto the frame guides from top to bottom, passing first one face then the other on the blade. The opercula cut in this way fall onto the bench's drip pan. The different inclination of the frame varies the incidence of the blade thus the depth of cut. When the frame is fully tilted, the blade cuts flush with the wood. The frame supports can be changed in support width to fit any size. The thermostat allows the cutting blade temperature to be changed to select the optimum temperature for uncapping frames. A practical and compact uncapping machine for those who have few Beehives but want to rely on the precision of a mechanical blade. The electric benchtop uncapping machine is designed to be placed on our workbenches. With this uncapping machine you can process up to 150 frames in an hour, allowing you to speed up your work. Designed and manufactured inside our factory, the benchtop uncapping machine is the result of Made in Italy quality and all Lega experience. ADVANTAGES Easy to use Easy to clean Silent Made in Italy Durable over time TECHNICAL CHARACTERISTICS Manufacture: Stainless steel AISI 304 Maximum dimensions: 520x420x250 mm Motor power: 250 W Electrical absorption: 880 W Power supply voltage: 220 V Frequency: 50 Hz Temperatures reached: 40° to 120° C Production capacity: 150 frames/h Weight: 15 kg *The supports and adjusting screws are plastic

-

-

TECHNICAL SPECIFICATIONSInner diameter: 350 mmOuter diameter: 470 mmInner height: 650 mmOuter height: 750 mmCapacity: 70 litersDiathermic oil capacity: 50 litersElectrical absorption: 1000 WØ Taps: ½ inch Weight: 28 KgHeat protection: PolyethyleneWhen the melter is used in its classic version, i.e., with temperatures below 90°c, the heating element simply heats some water that must be introduced into the gap between the two containers. The thermostat, with manual temperature control, keeps the temperature of the wax stable, thus avoiding dangerous overheating. The melter uses the bain-marie technique, by indirect heating to avoid overheating the wax, which would seriously damage its color, smell and texture. In the melter, either water or diathermic oil can be used as the heating liquid, depending on the use. If it is used as a sterilizer, it should be equipped with a special heating element and the heating liquid should be diathermic oil, suitable for high temperatures, instead of water.-Diathermic oil is not included

TECHNICAL SPECIFICATIONSInner diameter: 350 mmOuter diameter: 470 mmInner height: 650 mmOuter height: 750 mmCapacity: 70 litersDiathermic oil capacity: 50 litersElectrical absorption: 1000 WØ Taps: ½ inch Weight: 28 KgHeat protection: PolyethyleneWhen the melter is used in its classic version, i.e., with temperatures below 90°c, the heating element simply heats some water that must be introduced into the gap between the two containers. The thermostat, with manual temperature control, keeps the temperature of the wax stable, thus avoiding dangerous overheating. The melter uses the bain-marie technique, by indirect heating to avoid overheating the wax, which would seriously damage its color, smell and texture. In the melter, either water or diathermic oil can be used as the heating liquid, depending on the use. If it is used as a sterilizer, it should be equipped with a special heating element and the heating liquid should be diathermic oil, suitable for high temperatures, instead of water.-Diathermic oil is not included

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

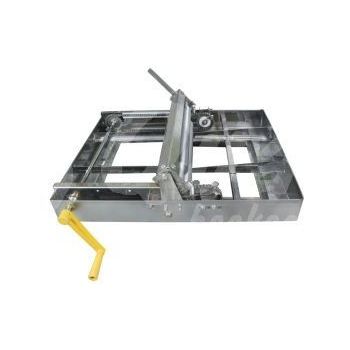

Its characteristics are: It needs no power supply It has no oscillating knives It has no heating The opening of the operculated cells is done by cutting the operculum by means of circular knives acting on both faces of the honeycomb at the same time. The honeycomb is pushed manually between the shafts carrying the circular knives by means of a vertically descending handle. The "cut surface" honeycomb is collected below on a small receiving rail. The drip tray under the machine is made of food-grade polyethylene Dimensions (600x400x170 mm).

Its characteristics are: It needs no power supply It has no oscillating knives It has no heating The opening of the operculated cells is done by cutting the operculum by means of circular knives acting on both faces of the honeycomb at the same time. The honeycomb is pushed manually between the shafts carrying the circular knives by means of a vertically descending handle. The "cut surface" honeycomb is collected below on a small receiving rail. The drip tray under the machine is made of food-grade polyethylene Dimensions (600x400x170 mm).

-

-

-

-

-

-

-

-

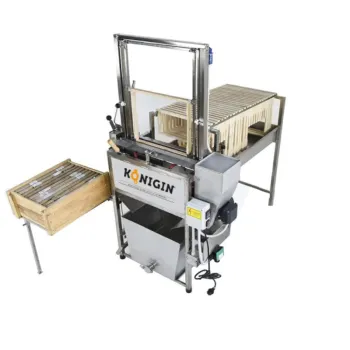

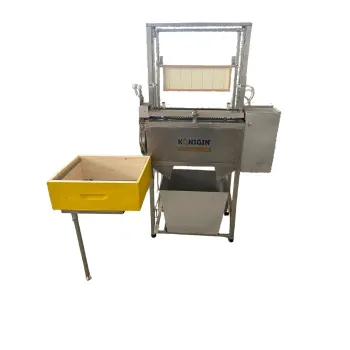

With this machine complete in every part, it will be possible to speed up uncapping and use the Extractor effectively. The output of the machine, is a minimum of 150 frames per hour, but you can get up to 250 frames per hour. Uncapping is carried out by knives placed parallel to the two sides of the frames, simultaneously on both sides.Due to the special structure of the blades, the cells are not damaged and therefore no deposits are formed on the blades.It does not require any kind of heating. The adjustment of the blades to the various frame sizes is done quickly, with a simple movement. The blades do not touch the slats of the frames but do not move within them, so no damage is generated on either the blades or the frames. The distance between the blades can also be easily adjusted during operation with the foot pedal or hand lever. The cut wax falls into a collection container equipped with a filter, and from here the honey then drips into the lower part of the container. It is also equipped with a convenient Honey super stand. It is available with 12 V or 230 V motor.

With this machine complete in every part, it will be possible to speed up uncapping and use the Extractor effectively. The output of the machine, is a minimum of 150 frames per hour, but you can get up to 250 frames per hour. Uncapping is carried out by knives placed parallel to the two sides of the frames, simultaneously on both sides.Due to the special structure of the blades, the cells are not damaged and therefore no deposits are formed on the blades.It does not require any kind of heating. The adjustment of the blades to the various frame sizes is done quickly, with a simple movement. The blades do not touch the slats of the frames but do not move within them, so no damage is generated on either the blades or the frames. The distance between the blades can also be easily adjusted during operation with the foot pedal or hand lever. The cut wax falls into a collection container equipped with a filter, and from here the honey then drips into the lower part of the container. It is also equipped with a convenient Honey super stand. It is available with 12 V or 230 V motor.

-

-

-

-

-

-

-

-

-

-

-

-

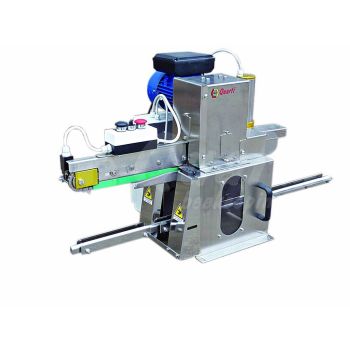

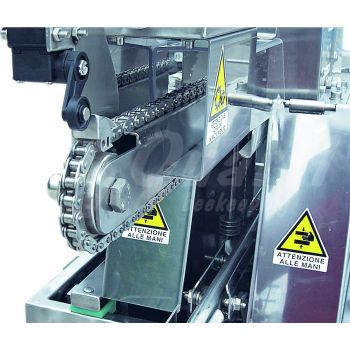

UNCOVERING MACHINE with alternating knives for Honey super combs -automatic honeycomb uncapping cycle-(one motor for two knives) TIG-welded stainless steel supporting structure 0.75Kw 230V knife handling motor.Honeycomb hauling motor 100W Two knives for cold cutting of the operculum,with alternating system Adjustment of cutting flush with wood or as desired Honeycomb coverer for combs with thickness from 22 to 35mm in automatic frame height adjustable support Automatic uncapping cycle for each individual honeycomb Run/stop/emergency button Hand protection barriers with cycle stop system OPTIONALS: automatic honeycomb unloading with accumulator for 5 uncapped combs. Air supply 6 bar, pressure regulator supplied Standard D.B. Honeycombs Power supply 230v 1000W OPTIONAL: Honeycomb unloader with accumulator for 5 uncapped honeycombs-pneumatic,including pressure regulator to be combined with uncapping machine

UNCOVERING MACHINE with alternating knives for Honey super combs -automatic honeycomb uncapping cycle-(one motor for two knives) TIG-welded stainless steel supporting structure 0.75Kw 230V knife handling motor.Honeycomb hauling motor 100W Two knives for cold cutting of the operculum,with alternating system Adjustment of cutting flush with wood or as desired Honeycomb coverer for combs with thickness from 22 to 35mm in automatic frame height adjustable support Automatic uncapping cycle for each individual honeycomb Run/stop/emergency button Hand protection barriers with cycle stop system OPTIONALS: automatic honeycomb unloading with accumulator for 5 uncapped combs. Air supply 6 bar, pressure regulator supplied Standard D.B. Honeycombs Power supply 230v 1000W OPTIONAL: Honeycomb unloader with accumulator for 5 uncapped honeycombs-pneumatic,including pressure regulator to be combined with uncapping machine

-

-

-

-

-

-

-

-

-

-
