Manual and automatic labelling machines for honey jars, cylindrical jars, wine bottles.
This labelling machine has a stainless steel casing and is equipped with a knurled silicone paper feed roller with quick release.
The machine is managed with a microprocessor electronic board and is in line with CE regulations.
The basic version is equipped to distribute two labels.
TECHNICAL CHARACTERISTICS
Insertion of the container in an inclined position.
Adjustable pressure on the container when labelling.
Possibility of applying labels up to a maximum development of 280 mm.
Suitable for cylindrical formats with a diameter between 45 mm and 120 mm.
Roll holder reel with an internal diameter of 76 mm (or 40 mm) and external diameter of 270 mm.
Paper passage: max. 140 mm.
Power supply: 230 V single phase – 50 Hz. - Power consumption: 0.20 Kw.
Label application error tolerance: +/- 2 mm (with cylindrical containers).
Hourly production: approximately 800 b/h.
This labelling machine has a stainless steel casing and is equipped with a knurled silicone paper feed roller with quick release.
The machine is managed with a microprocessor electronic board and is in line with CE regulations.
The basic version is equipped to distribute two labels.
TECHNICAL CHARACTERISTICS
Insertion of the container in an inclined position.
Adjustable pressure on the container when labelling.
Possibility of applying labels up to a maximum development of 280 mm.
Suitable for cylindrical formats with a diameter between 45 mm and 120 mm.
Roll holder reel with an internal diameter of 76 mm (or 40 mm) and external diameter of 270 mm.
Paper passage: max. 140 mm.
Power supply: 230 V single phase – 50 Hz. - Power consumption: 0.20 Kw.
Label application error tolerance: +/- 2 mm (with cylindrical containers).
Hourly production: approximately 800 b/h.
Semi-automatic adhesive labelling machine for benchtop, Mod. BASIC - For glass jars of honey or other and glass bottles
The Basic model is very simple to use, the die can be equipped with the first or even the second label, to have the label and back label on the same cycle.
CONTROLS: - Power switch - Switch for choosing one or two labels - Adjustment of the distance between the first label and back label
- Start pedal
- Cylindrical container diameter from 45 mm to 120 mm
- Dimensions: Length 65 - Width 45 - H 55 cm - Weight 20 Kg
Semi-automatic adhesive labelling machine for benchtop, Mod. BASIC - For glass jars of honey or other and glass bottles
The Basic model is very simple to use, the die can be equipped with the first or even the second label, to have the label and back label on the same cycle.
CONTROLS: - Power switch - Switch for choosing one or two labels - Adjustment of the distance between the first label and back label
- Start pedal
- Cylindrical container diameter from 45 mm to 120 mm
- Dimensions: Length 65 - Width 45 - H 55 cm - Weight 20 Kg
Semi-automatic adhesive labelling machine for benchtop, Mod. BASIC - For glass jars of honey or other and glass bottles
The Basic model is very simple to use, the die can be equipped with the first or even the second label, to have the label and back label on the same cycle.
CONTROLS: - Power switch - Switch for choosing one or two labels - Adjustment of the distance between the first label and back label
- Start pedal
- Cylindrical container diameter from 45 mm to 120 mm
- Dimensions: Length 65 - Width 45 - H 55 cm - Weight 20 Kg

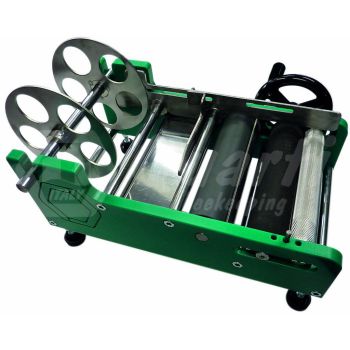

- polyzene and stainless steel frame - adjustable backing paper guide - 3 adjustment positions for jar diameter - stainless blade for label positioning - rubberized backing paper puller with aluminum knurled contrast roller - adjustable label position indicator - adjustment hand wheel with handle
- polyzene and stainless steel frame - adjustable backing paper guide - 3 adjustment positions for jar diameter - stainless blade for label positioning - rubberized backing paper puller with aluminum knurled contrast roller - adjustable label position indicator - adjustment hand wheel with handle
MANUAL LABELING MACHINE for ROUND POTS - pot diameter min. 40 mm - pot diameter max. 120 mm - pot height max. 150 mm
MANUAL LABELING MACHINE for ROUND POTS - pot diameter min. 40 mm - pot diameter max. 120 mm - pot height max. 150 mm
MANUAL LABELING MACHINE for ROUND POTS - pot diameter min. 40 mm - pot diameter max. 120 mm - pot height max. 150 mm
