Honey batching machine dana 1000 api matic - basic model
SY 110040EU
€3,100.00
Tax included

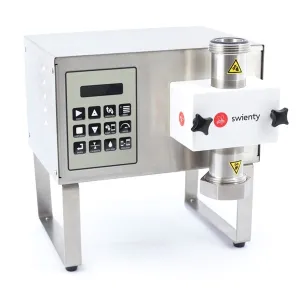

ELECTRONIC DOSING MACHINE FOR HONEY with display for programmingBASIC MODEL (with start pedal)The dosing machine comes complete with fittings, 40 mm diameter tube, clamp for tightening tube to dosing unit, spare partsACCESSORIES to be ordered separately- Support top (Code SY 14044)- Start switch on board (Code SY 110045)- 10 L funnel (Code. SY 1106640)- DOSAGE FROM 50 g to 10 kg- PRECISION +/- 2 g- 20 programs to set and calibrate relative weighings to be kept in memory(also suitable for other viscous liquids)- Single-phase 96-269 VAC power supply (use 230 V - 50 Hz)- 230 W power consumption- Microprocessor-controlled pump motor ensures anti-drop function- Pump can run in both directions, with variable speed

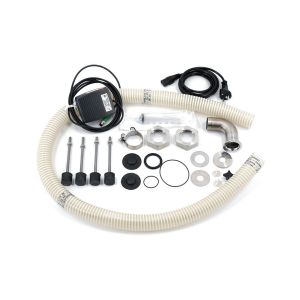

Mounted on the machine are: 110075- Foot Button110059- Backflow Valve115815- Metering Syringe 0-60 ml500110F- Nut for BS fitting 1½"- 40 mm110065C- Complete Cross Cutter ø20110046- No. 4 Legs with Feet110165- Pipe 1½"- 40 mm110110A- Curved BS fitting 1½"- 40 mm110175- Hose Connector 1½"- 40 mm With the machine you receive an included spare parts set containing: 2 x 110065D Crosscut Ø202 x 110072 Black rubber diaphragm2 x 500212 BS gasket 1½2 x 502740 Hand-mountable nuts for head2 x 508037 O-ring 37x2 NBR 701 x 508082 O-ring 82x2 NBR 70 The DANA api MATIC 1000 is a gear-pump filling machine. A powerful low-voltage DC motor drives the gear pump with the help of a helical gearbox. The motor is controlled by computerized electronics, which also ensures a perfect anti-drop function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters. The machine works accurately and is easy to program for different substances. As a pump, the machine works in both directions and can be set to different speeds. All parts that come in contact with the substance are made of food-grade plastic or stainless steel and are easy to disassemble and clean. TECHNICAL DATAMachine type: computer-controlled gear pumpFilling capacity: 10 g - 10 Kg (honey)Weight units: ml / g / ozPrecision: +/- 2 gPump capacity: approx. 270 kg/hourPrograms: more than 20 options to be programmedPower supply: 90-264VAC 50/60HzPower: 230 WLSound level: pump sound pressure level is less than 70 dB(A)Weight: approx. 10.5 kgDimensions: 33 x 31 x 18.5 cmConnections: 1½"- 40 mm BS pipe connection on both sides of the pump
SY 110040EU
You might also like
he stand is made of sturdy stainless steel and has a plastic guide, on which you can place the jar so that it is centered exactly under the filling spout. The guide can also be adjusted back and forth, depending on the diameter of your jar The stand can be used for jars with a full height between 3.5 cm and 25.5 cm Technical data: Length: 37.1 cm Width: 32.1 cm Height: 40.6 cm Thickness: 3 mm Weight: 4.6 kg
€330.00Price
ELECTRONIC DOSING MACHINE FOR HONEY with display for programmingBASIC MODEL (with start pedal)The dosing machine comes complete with fittings, 40 mm diameter tube, clamp for tightening tube to dosing unit, spare partsACCESSORIES to be ordered separately- Support top (Code SY 14044)- Start switch on board (Code SY 110045)- 10 L funnel (Code. SY 1106640)- DOSAGE FROM 50 g to 10 kg- PRECISION +/- 2 g- 20 programs to set and calibrate relative weighings to be kept in memory(also suitable for other viscous liquids)- Single-phase 96-269 VAC power supply (use 230 V - 50 Hz)- 230 W power consumption- Microprocessor-controlled pump motor ensures anti-drop function- Pump can run in both directions, with variable speed
