Dosatrice Per Miele DANA 1000 Api MATIC- Completa piano di supporto e interruttore
search
  • Dosatrice Per Miele DANA 1000 Api MATIC- Completa piano di supporto e interruttore
  • Honey batching machine dana 1000 api matic- complete support table and switch
  • Honey batching machine dana 1000 api matic- complete support table and switch
  • Honey batching machine dana 1000 api matic- complete support table and switch
€3,580.00
Tax included

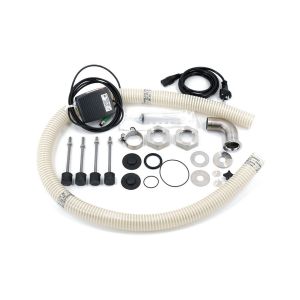

ELECTRONIC DOSING MACHINE FOR HONEY with display for programmingCCOMPLETE WITH : TABLE SUPPORT WITH JAR CENTERING AND SWITCH FOR FILLING STARTFILLERFILLER comes complete with fittings, 40 mm diameter tube, clamp for tightening tube to dispenser, spare partsWith the table stand you can easily and quickly adjust the height of the filling machine to fit jars with different heights and with support guide to exactly center the jar under the nozzle. - DOSAGE FROM 50 g to 10 kg - PRECISION +/- 2 g- 20 programs to set and calibrate relative weighings to keep in memory (also suitable for other viscous liquids)- Single-phase 96-269 VAC power supply (use 230 V - 50 Hz) - 230 W power consumption- Microprocessor-controlled pump motor ensures anti-drop function- Pump can run in both directions, with variable speed
Quantity
Out-of-Stock

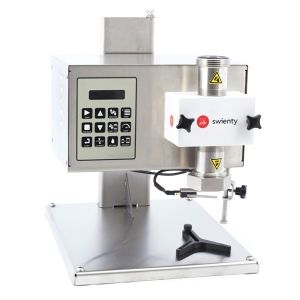

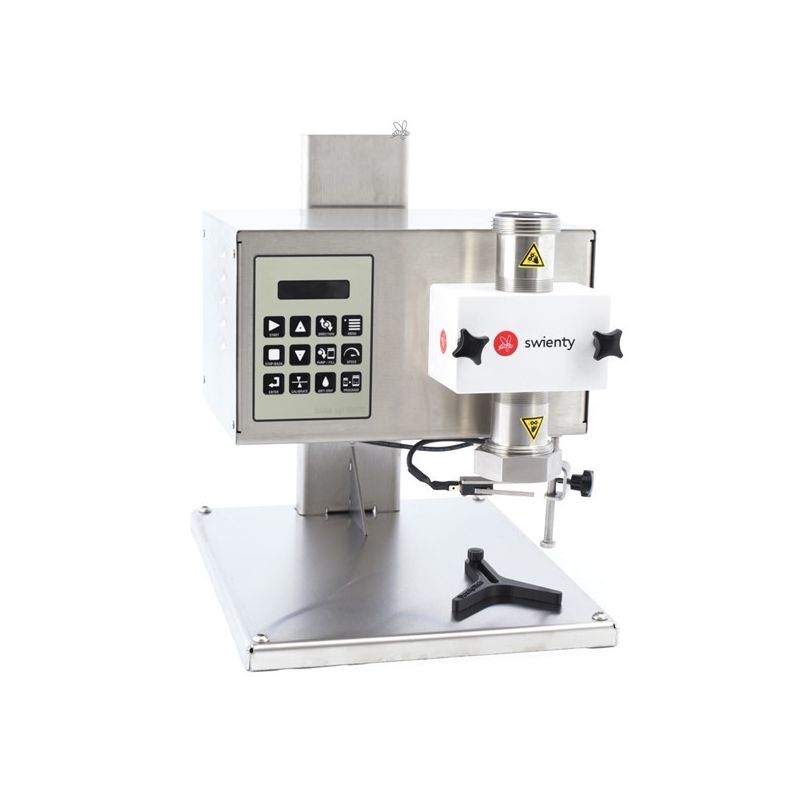

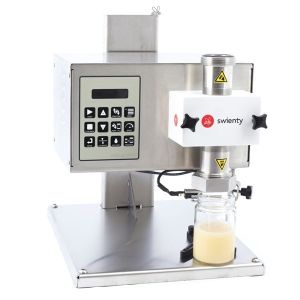

The DANA api MATIC 1000 is a filling machine with a gear pump. A powerful low-voltage DC motor drives the gear pump with the help of a helical gearbox. The motor is controlled by computerized electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters. The machine works accurately and is easy to program for different substances. As a pump, the machine works in both directions and can be set to different speeds. All parts that come in contact with the substance are made of food-grade plastic or stainless steel and are easy to disassemble and clean. The stand is made of sturdy stainless steel and has a plastic jar guide, which you can lean the jar against so that it is centered exactly under the nozzle. The jar guide can also be adjusted back and forth depending on the diameter of the jar. The stand can be adjusted to 13 different heights at 0.5 cm intervals. The stand can be used for jars that have a full height between 3.5 cm and 23.5 cm. It measures 37 x 32 x 41 cm and weighs 4.6 kg. TECHNICAL DATA Machine type: computer-controlled gear pump Filling capacity: 10 g - 10 kg (honey) Weight units: ml / g / oz Accuracy: +/- 2 g Pump capacity: approx. 270 kg/hour Programs: over 20 options to be programmed Power supply: 90-264VAC 50/60Hz Power: 230 W Sound level: pump sound pressure level is less than 70 dB(A) Weight: approx. 10.5 kg Dimensions: 33 x 31 x 18.5 cm Connections: 1½"- 40 mm BS pipe connection on both sides of the pump On the machine are mounted: 110075- Foot pedal button 110059- Backflow valve 115815- Dosing syringe 0-60 ml 500110F- Nut for BS fitting 1½"- 40 mm 110065C- Complete cut-off cross ø20 110165- 1½"- 40 mm pipe 110110A- Curved BS fitting 1½"- 40 mm 110175- Hose fitting 1½"- 40 mm With the machine you receive an included spare parts set containing: 2 x 110065D Crosscut Ø20 2 x 110072 Black rubber diaphragm 2 x 500212 BS gasket 1½ 2 x 502740 Hand-mountable nuts for head 2 x 508037 O-ring 37x2 NBR 70 1 x 508082 O-ring 82x2 NBR 70
SY 110041EU
