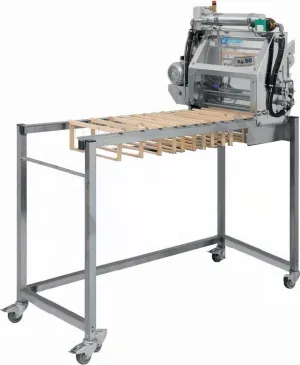

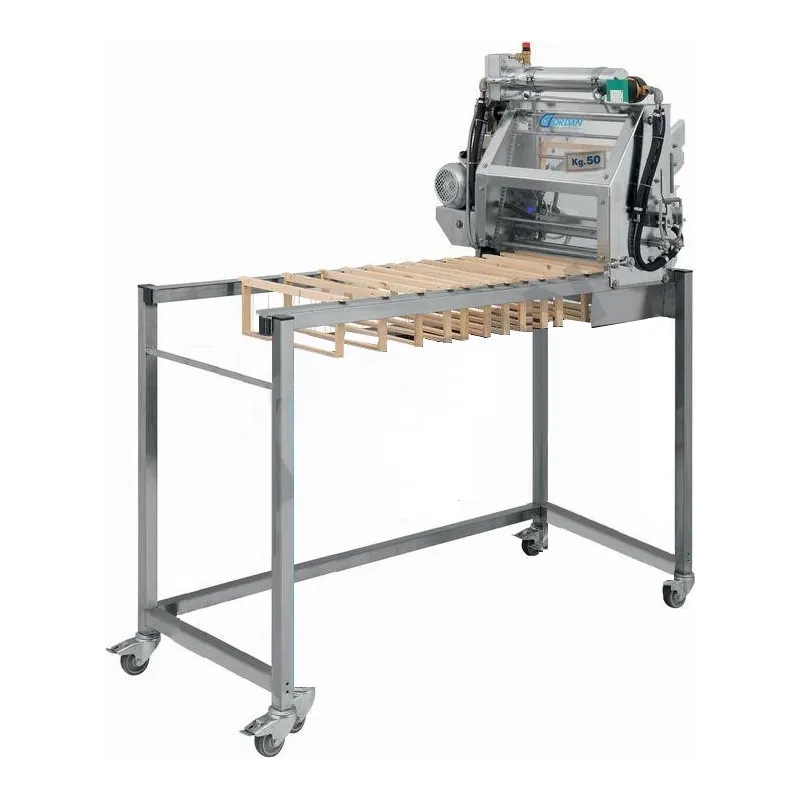

Heated vibrating knife uncapping machine complete with support frame
GN 170KT
€6,760.00
Tax included
Uncapping Machine (GN 170K) with Support Frame (GN TDB)The uncapping machine (GN 170K) with heated vibrating knives "Giordan" is a professional machine that replaces the manual uncapping procedure. The machine is constructed entirely of AISI 304 stainless steel and works by guided passage of the frames inside two water-heated vibrating knives that allow for precise and optimal cutting of the operculum.. Uncapping capacity: about 11 frames/minute. Knife temperature: via thermostat from 30° C to 90° C. Power supply: 220 V Absorption: 2.8 KW 13.5 ADim.: 94 X 61.5 X H 85 cm Support frame (GN TDB)Support frame (GN TDB) with 4 legs with wheels made of AISI 304 steel complete with stainless steel drainDim.: 87 X 180 X H 98 cmThe support allows insertion of uncapping bench with wheels, from 100-120-150 cm and fondicera (not included)

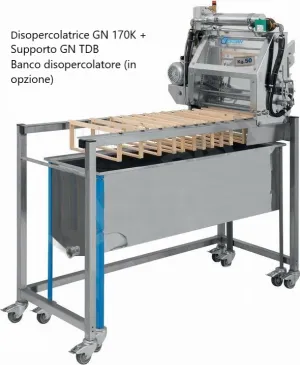

**MACHINE MANUFACTURED FOR DADANT BLATT FRAMES. UPON REQUEST, UPON RECEIPT OF MEASUREMENTS IT CAN ALSO BE BUILT FOR OTHER FRAME SIZES. The knives are heated by means of a hot water heating and recycling unit (included in the machine) and it is possible to adjust the temperature of the knives by means of a special thermostat. The knives also work inside the wooden frame of the honeycombs and thus can uncapping even unfilled frames. Adjustment of the knives is quick and easy via a lever on the side of the uncapping machine that allows the passage between the knives to be tightened or widened. Manually introduced combs are guided and inserted, automatically between the blades in order to achieve smooth and systematic uncapping on both sides. Following the uncapping process, the frames are stored by sliding on the frame. An uncapping bench can be placed under the frame as in the photo (the length of the frame varies according to the length of the bench).
