Disomelter: monoblock uncapping machine + direct fondicera
GN MONOBLOCK2
€15,677.00
Tax included

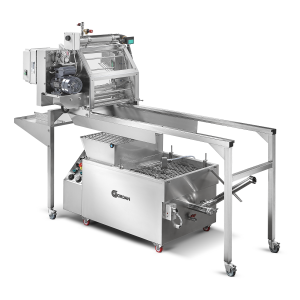

DISOMELTER is a compact professional machine consisting of the "Giordan" heated vibrating knife uncapping machine (code 170K) and the direct melter. The machine is constructed entirely of AISI 304 stainless steel and works by guided passage of the frames inside two water-heated vibrating knives that allow for precise and optimal cutting of the operculum. With the uncapping machine, the opercula are not crumbled but cut, as with the use of a manual knife. With the addition of the double blade kit, there is no need to go over the frames again after the uncapping process. The operculum is then collected in the direct fondicera below the uncapping machine. It has the function of separating the operculum from the honey and directly generating molten wax. The result will be the outflow, from two separate drains, of clean melted wax and honey.

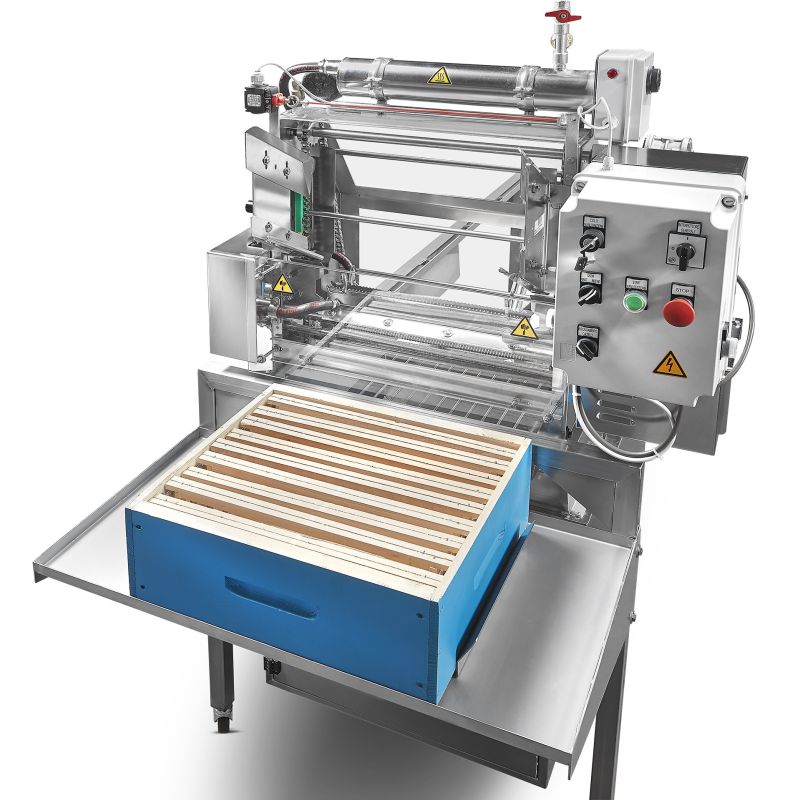

The knives are heated via a hot water heating and recycling unit (included with the machine), and the temperature of the knives can be adjusted via a special thermostat. The knives also work inside the wooden frame of the honeycombs and thus can uncapping even unfilled frames. Adjustment of the knives is quick and easy via a lever on the side of the uncapping machine that allows the passage between the knives to be tightened or widened. Manually introduced combs are guided and inserted, automatically between the blades in order to achieve smooth and systematic uncapping on both sides. Following the uncapping process, the frames are stored by sliding on the frame. An uncapping bench can be placed under the frame as in the photo (the length of the frame varies according to the length of the bench). The direct melter is equipped with a dual control (one for controlling the temperature of the honey, and the other for adjusting the temperature of the operculum melt) and dual discharge (one dedicated to honey and the other for wax discharge). The machine is equipped with a simple and functional control panel. And it is built with a double heated chamber. Following careful analysis and evaluation, the use of heat to melt the wax does not alter the freshness index of the honey and its state of preservation. Therefore, it was found that, in the honeys of the fondicera, the recorded HFM values are far below the threshold stipulated by the relevant regulations (L.D. No.179/2004). See attached report for further information. Uncapping capacity: about 11 frames/minute. Knife temperature: via thermostat from 30° C to 90° C. Power supply: 220 V (also possible in 380 V) Absorption: 8.8 KW **MACHINE PRODUCED FOR DADANT BLATT CANVAS.
GN MONOBLOCK2
DISOMELTER is a compact professional machine consisting of the "Giordan" heated vibrating knife uncapping machine (code 170K) and the direct melter. The machine is constructed entirely of AISI 304 stainless steel and works by guided passage of the frames inside two water-heated vibrating knives that allow for precise and optimal cutting of the operculum. With the uncapping machine, the opercula are not crumbled but cut, as with the use of a manual knife. With the addition of the double blade kit, there is no need to go over the frames again after the uncapping process. The operculum is then collected in the direct fondicera below the uncapping machine. It has the function of separating the operculum from the honey and directly generating molten wax. The result will be the outflow, from two separate drains, of clean melted wax and honey.
