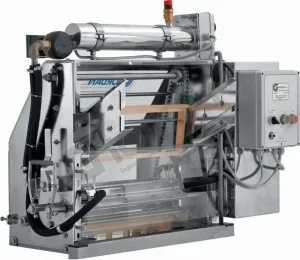

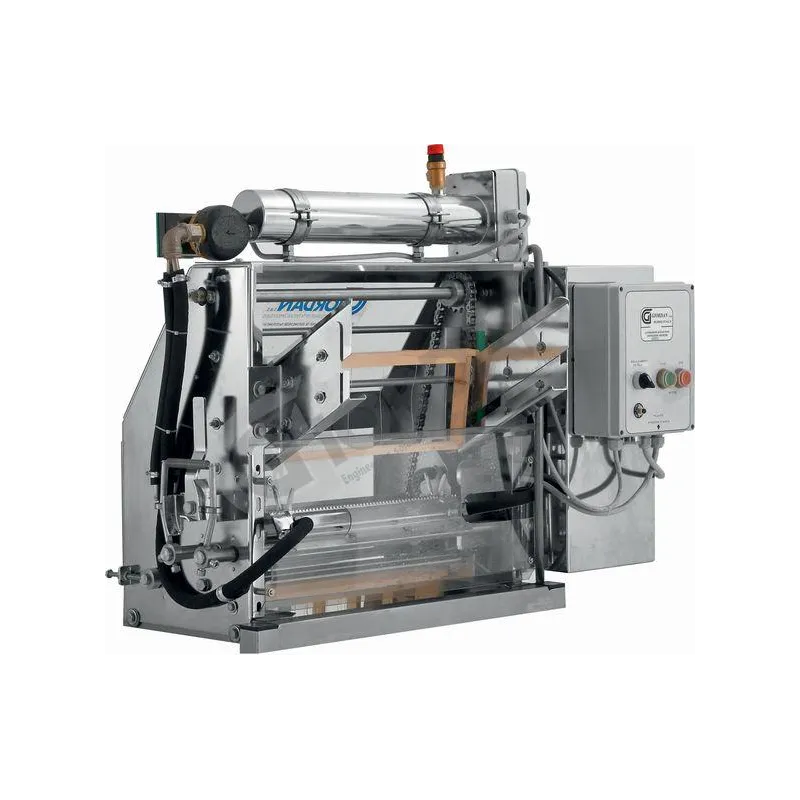

Uncapping machine with heated vibrating knives
GN 170K
€6,180.00
Tax included
Uncapping machine (GN 170K) machine only without optional The "Giordan" heated vibrating knife uncapping machine is a professional machine that replaces the manual uncapping procedure. The machine is made entirely of AISI 304 stainless steel and works by guided passage of the frames inside two water-heated vibrating knives that allow for precise and optimal cutting of the operculum. With the uncapping machine, the opercula are not crumbled but cut, as with the use of a manual knife. With the addition of the double blade kit, there is no need to go over the frames again after the uncapping process. Uncapping capacity: approximately 11 frames/minute. Knife temperature: via thermostat from 30° C to 90° C. Power supply: 220 V Absorption: 2.8 KW 13.5 A DIM: Width 94 cm x Length 61.5 cm x Height 85 cm
**MACHINE MANUFACTURED FOR DADANT BLATT FRAMES. UPON REQUEST, UPON RECEIPT OF MEASUREMENTS IT CAN ALSO BE BUILT FOR OTHER FRAME SIZES. The knives are heated by means of a hot water heating and recycling unit (included in the machine) and it is possible to adjust the temperature of the knives by means of a special thermostat. The knives also work inside the wooden frame of the honeycombs and thus can uncapping even unfilled frames. Adjustment of the knives is quick and easy via a lever on the side of the uncapping machine that allows the passage between the knives to be tightened or widened. Manually introduced combs are guided and inserted, automatically between the blades in order to achieve smooth and systematic uncapping on both sides.
GN 170K
Uncapping machine (GN 170K) machine only without optional The "Giordan" heated vibrating knife uncapping machine is a professional machine that replaces the manual uncapping procedure. The machine is made entirely of AISI 304 stainless steel and works by guided passage of the frames inside two water-heated vibrating knives that allow for precise and optimal cutting of the operculum. With the uncapping machine, the opercula are not crumbled but cut, as with the use of a manual knife. With the addition of the double blade kit, there is no need to go over the frames again after the uncapping process. Uncapping capacity: approximately 11 frames/minute. Knife temperature: via thermostat from 30° C to 90° C. Power supply: 220 V Absorption: 2.8 KW 13.5 A DIM: Width 94 cm x Length 61.5 cm x Height 85 cm
